The Ultimate Guide to Choosing a Flexo Folder Gluer for High-Speed Carton Production

Introduction: The Evolution of Corrugated Box Manufacturing

The landscape of Corrugated Box Manufacturing has undergone a radical transformation over the last two decades. Gone are the days when a box was simply a brown vessel for transport, discarded immediately upon arrival. Today, packaging is a critical component of brand identity, the "unboxing experience," and supply chain efficiency. This shift from standard brown boxes to high-graphics packaging has placed immense pressure on manufacturers to upgrade their machinery.

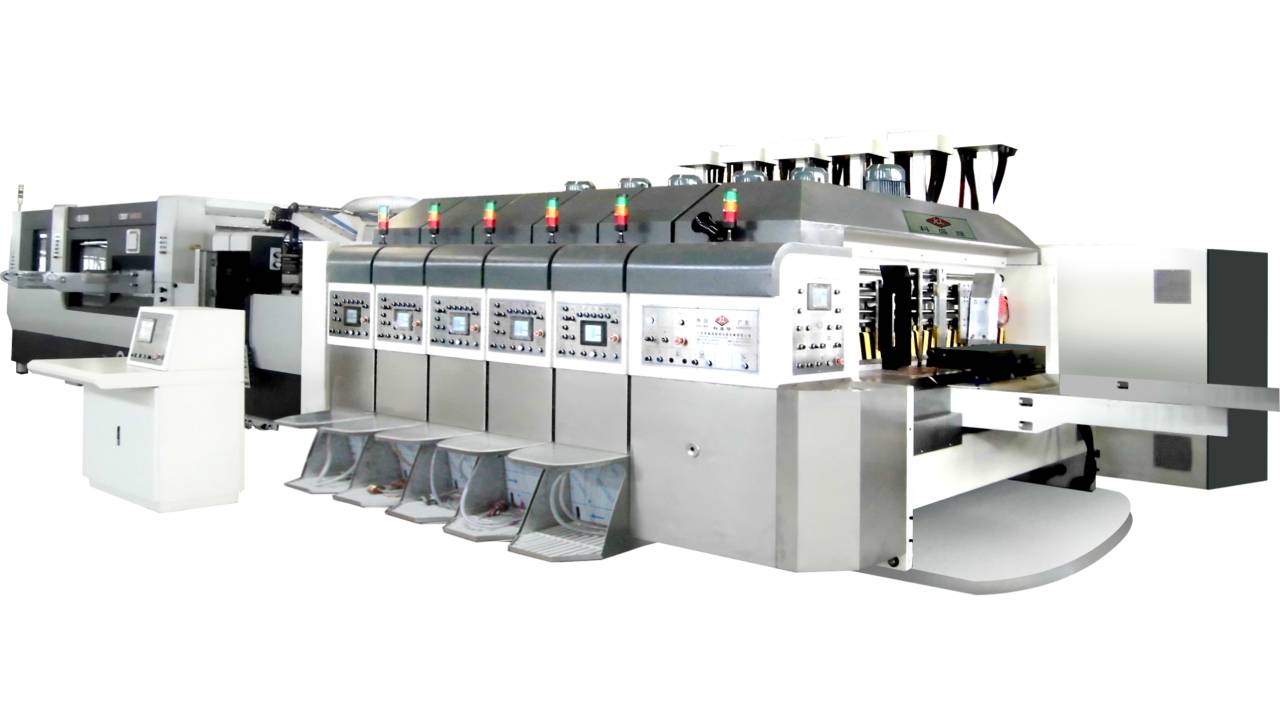

At the heart of this modern production line sits the Flexo Folder Gluer (FFG). This machine is the workhorse of the industry, capable of printing, creasing, slotting, gluing, and folding a corrugated board into a finished box in a single pass. However, as the demand for intricate designs and "shelf-ready" packaging grows, the definition of a capable FFG has evolved. It is no longer enough to simply process board; the modern FFG must act as a high-fidelity printing press combined with a precision converting unit.

For plant managers and business owners, the challenge lies in distinguishing between marketing numbers and real-world performance. While manufacturers often advertise blistering top speeds, seasoned veterans know that sustained speed—the ability to run consistently without jams or defects—matters far more than theoretical capability. This guide delves deep into the engineering, specifications, and financial considerations required to select the right equipment, focusing on High-Precision Flexo Printing, stability, and maximizing Box Making Machinery ROI.

Speed vs. Stability: Engineering for Sustained Output

In the competitive world of packaging, throughput is king. However, a common pitfall in selecting a Flexo Folder Gluer is prioritizing the maximum mechanical cycle speed over machine stability. A machine rated for 300 sheets per minute that jams every 20 minutes is far less profitable than a robust machine running continuously at 250 sheets per minute.

The Impact of Vibration Control

The secret to sustained output lies in the machine's mass and engineering. High-speed operation generates significant kinetic energy. If the machine frame is too light or the walls are too thin, this energy manifests as vibration. Vibration is the enemy of print quality and machine longevity. It causes "dot slur" in printing, rapid wear on bearings, and eventual misalignment of the slotting shafts.

Premium FFGs utilize heavy-duty cast iron frames and reinforced side walls (often exceeding 50mm in thickness) to dampen these vibrations. This rigidity ensures that even when the machine is running at high velocities, the print registration remains tight, and the folding arms remain synchronized.

Lead Edge Feeding Systems: Handling Variation

The feeder is the gatekeeper of production. Traditional kick-feeders are often insufficient for modern corrugated board, which is frequently warped or constructed with lightweight recycled fibers. Advanced machines now employ Lead Edge Feeding systems. These systems use a series of high-friction wheels and vacuum suction to grip the leading edge of the board securely.

This technology is crucial for two reasons:

1. Warp Handling: It can flatten and feed warped boards that would jam a standard feeder.

2. Micro-Flute Capability: It handles delicate micro-flutes (like E or F flute) without crushing the fluting, preserving the structural integrity required for High-Precision Flexo Printing.

The Real Math of Production Rates

When calculating capacity, one must look at "net workable speed." Consider a shift:

· Machine A (High Speed, Low Stability): Runs at 300 sheets/min but stops 4 times an hour for 5 minutes due to jams. Total output: ~12,000 boxes/hour (minus scrap).

· Machine B (Sustained Stability): Runs at 250 sheets/min with zero stops. Total output: 15,000 boxes/hour.

Investing in stability ensures that the Flexo Folder Gluer delivers predictable, high-volume results day in and day out.

Printing Precision: The 6+1 Color Advantage

The modern consumer judges a product by its packaging. Consequently, the flexography process has had to evolve from simple text stamping to photorealistic imagery. To meet this demand, modern FFGs are increasingly configured with 6+1 print units (CMYK + 2 Spot Colors + Varnish/Drying).

Registration Accuracy and Computerized Controls

Achieving high-end graphics requires impeccable registration accuracy. If the cyan plate is slightly misaligned with the magenta plate, the image becomes blurry. Modern FFGs utilize full servo-drive technology and vacuum transfer systems throughout the print section. Vacuum transfer holds the sheet firmly against the transport belt, eliminating the "fish-tailing" or skewing that occurs with roller transfer systems. This allows for registration tolerances as tight as ±0.5mm, essential for multi-color process printing.

Ceramic Anilox Rollers and Doctor Blades

The quality of the print is directly determined by ink metering. Old rubber roll systems are being replaced by ceramic anilox rollers paired with chambered doctor blade systems.

· Ceramic Anilox: Laser-engraved with microscopic cells to carry a precise volume of ink.

· Chambered Doctor Blade: Shaves excess ink off the roller surface, ensuring that the dot gain is minimized and the color consistency remains identical from the first box to the ten-thousandth box.

Advanced Ink Systems and Waste Reduction

Efficient ink circulation systems are vital for both cost and quality. Automated wash-up cycles can clean the ink system in under 3 minutes, significantly reducing water usage and ink waste. Furthermore, these systems maintain ink viscosity and pH levels automatically, preventing the print defects associated with ink drying or thickening during a run.

Single-Pass Integration

The true power of the FFG is the integration of these high-end print capabilities with slotting and die-cutting. The ability to apply a high-gloss UV varnish in the final unit, followed immediately by precise rotary die-cutting for handles or vents, allows manufacturers to produce "shelf-ready" packaging in a single pass, drastically reducing work-in-progress (WIP) inventory.

Technical Specifications & Flute Adaptability

Versatility is the greatest hedge against market volatility. A Flexo Folder Gluer limited to shipping boxes (C-flute) restricts the manufacturer's ability to bid on high-margin e-commerce or retail packaging contracts.

Handling Flute Profiles

A robust machine must handle a spectrum of board grades:

· Double Wall (BC, EB): Heavy-duty capability for industrial parts and produce bins.

· Standard (A, B, C): The bread and butter of shipping containers.

· Micro-Flutes (E, F): Essential for consumer electronics and cosmetics packaging.

The challenge with E-flute is that it is thin and rigid but easily crushed. Machines must have adjustable crush wheels and "zero-crush" feeding technologies to process these boards without damaging the print surface or the structural strength.

Machine Tolerances and Standards

Adhering to corrugated industry standards is non-negotiable for supply chain integration. Automated retailers use robotic pickers that require boxes to be perfectly square.

· Gap Control: The folding section must ensure the manufacturer's joint gap (the fish-tail) is within strict tolerances (typically 3/8" to 1/2").

· Squaring: Extended folding sections with squaring belts correct the skew of the box before it enters the counter-ejector, ensuring perfect 90-degree angles.

Energy Consumption and Sustainability

Modern specifications also focus on sustainability. Servo-driven machines consume less power than older gear-driven models because motors only draw current when active. Additionally, regenerative braking systems on large motors can feed energy back into the plant's grid, lowering the total cost of operation.

Maximizing ROI: Setup Times and Efficiency

Calculating Box Making Machinery ROI requires a shift in perspective from "running speed" to "setup efficiency." The packaging market has moved toward "Just-in-Time" manufacturing. Order sizes are shrinking, and variety is increasing. A machine that takes 45 minutes to set up destroys profit margins on short-run orders (e.g., 500 to 2,000 boxes).

The "Order Change" Revolution

Modern FFGs are equipped with CNC (Computer Numerical Control) systems. These allow for:

· One-Button Setup: Operators can recall repeat orders from memory. The machine automatically adjusts slotting heads, print cylinder positions, side guides, and glue guns to the exact settings used previously.

· setup While Run: On some advanced dual-bay machines, operators can mount printing plates for the next order while the current order is still running.

The ROI Equation

To calculate the ROI, consider the reduction in downtime.

· Legacy Machine: 3 setups/shift x 30 mins/setup = 90 mins downtime.

· Modern CNC FFG: 3 setups/shift x 5 mins/setup = 15 mins downtime.

That creates an extra 75 minutes of production time per shift. Over a year, this equates to hundreds of thousands of additional boxes produced without increasing labor costs. Furthermore, computerized setups drastically reduce "startup scrap"—the number of boxes wasted getting the registration right—further improving the bottom line.

Maintenance, Safety, and Troubleshooting

Even the most advanced machine is only as good as its maintenance. Neglecting FFG Machine Maintenance is the fastest way to turn a multi-million dollar investment into a liability.

Routine Maintenance Schedules

Preventative maintenance is cheaper than reactive repair.

· Daily: Clean ink chambers and anilox rolls to prevent cell clogging. Blow down paper dust from sensors.

· Weekly: Check belt tension in the folding section. Lubricate linear guides and bearings.

· Quarterly: Calibrate the zero-point of the servo motors. Inspect the condition of the anvil covers in the die-cut section.

Common Defects and Solutions

Understanding common issues helps in rapid troubleshooting:

· Washboarding: A printing defect where the flute pattern shows through the ink. Solution: Use softer mounting tapes, reduce impression pressure, or switch to a "kiss-touch" printing setup.

· Ghosting: Faint images appearing where they shouldn't. Solution: Check ink viscosity and ensure the anilox-to-plate pressure is consistent.

· Fish-tailing: The box is glued unevenly. Solution: Check the folding belts for uneven wear or incorrect speed synchronization between the left and right belts.

Operator Safety Standards

The FFG is a powerful machine with many moving parts. Compliance with machinery safety regulations is critical to protect operators and avoid heavy fines.

· Interlocks: All access doors must have safety interlocks that cut power immediately if opened during operation.

· E-Stops: Emergency stop buttons must be accessible at every section of the machine (Feeder, Print, Slotter, Die-cutter, Folder-Gluer).

· Training: Operators must be trained not just on how to run the machine, but on Lockout/Tagout (LOTO) procedures during maintenance.

Conclusion

Investing in a Flexo Folder Gluer is not just about purchasing machinery; it's about securing a competitive edge in the corrugated market. By prioritizing sustained stability, precision capabilities like 6+1 printing, and rapid changeover technologies, manufacturers can maximize ROI and meet the growing demand for high-quality packaging. Don't simply look at top speeds—evaluate the total cost of ownership, versatility across flute types, and the reliability of engineering to ensure your production line remains profitable for years to come.

FAQ

What is the difference between top speed and sustained speed in a Flexo Folder Gluer?

Top speed refers to the maximum mechanical cycle the machine can run (e.g., 300 sheets/minute), while sustained speed accounts for stops, jams, and adjustments. A stable machine running consistently at 250 sheets/minute often yields higher daily output than a faster, unstable one.

Can Flexo Folder Gluers handle E-flute and micro-flute cardboard?

Yes, modern high-precision FFGs with advanced lead-edge feeders and vacuum transfer systems are designed to handle delicate E-flutes and micro-flutes without crushing the board, ensuring high print quality.

How often does a Flexo Folder Gluer require maintenance?

Routine maintenance should be performed daily (cleaning ink systems, checking sensors) and weekly (lubrication, belt tension). Comprehensive preventative maintenance checks are typically recommended quarterly to ensure long-term precision.

What is the advantage of a 6+1 color configuration?

A 6+1 configuration allows for high-end graphic printing (CMYK + 2 spot colors) plus a varnish or coating unit. This enables manufacturers to produce premium, shelf-ready packaging in a single pass.
