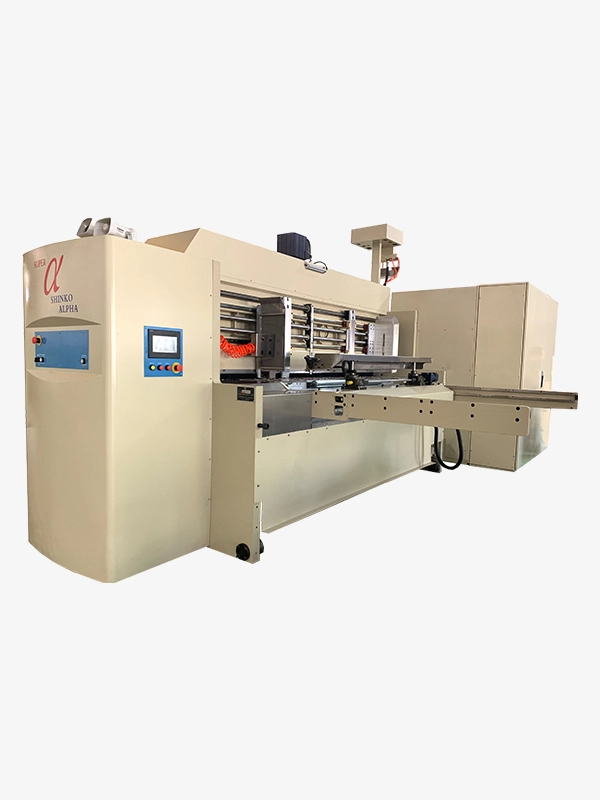

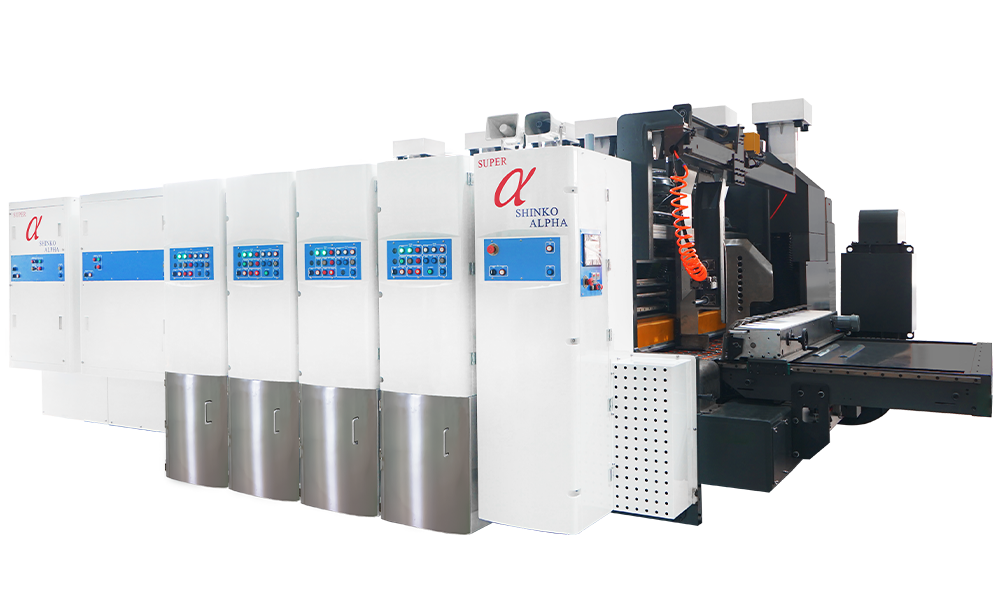

Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Machine
Introducing the Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Machine by Keshenglong. Engineered for precision and efficiency, this state-of-the-art machine enhances your production line with its advanced servo drive technology. Designed for seamless Flexo printing, slotting, and die-cutting, it ensures superior quality with every output.
standard
- 1. One-button operation function (test printing with one sheet, regular production can be done).
2. Equipped with remote diagnosis and maintenance function.
3. Full servo-driven feeding unit, printing unit, slotting unit, die cutting unit.
4. Adopt Japan Yaskawa servo control system.
5. The printing cylinder is driven by a servo motor, and it takes only 15 seconds to rotate a circle.
6. Adopts computerized automatic plate-locking system.
7. Dual slotting unit(creasing unit + slotting unit).
8. The whole machine is designed and manufactured according to high requirements, high speed, reliability and safety, quick order change and easy operation.
9. Able to connect to the ERP production management system.
detail
Specification
Data/Model | 600x1800 | 900x2000 | 900x2400 | 1200x2400 | 1200x2800 | 1400x2400 | 1400x2800 | 1600x2800 | 1600x3200 |
Max.Machine Speed (pcs/min) | 375 | 375 | 350 | 300 | 275 | 250 | 250 | 200 | 180 |
Max.Feeding Size (mm) | 600x1800 | 880x2000 | 880x2400 | 1210x2400 | 1210x2800 | 1350x2400 | 1350x2800 | 1520x2800 | 1520x3200 |
Min.Feeding Size (mm) | 200x450 | 230x660 | 230x660 | 290x680 | 290x680 | 360x680 | 360x680 | 460x710 | 460x710 |
Skip Feeding (mm) | 800x1800 | 1080x2000 | 1080x2400 | 1410x2400 | 1410x2800 | 1550x2400 | 1550x2800 | 1720x2800 | 1720x3200 |
Max.Printing Area (mm) | 570x1700 | 850x2000 | 850x2400 | 1150x2400 | 1150x2800 | 1350x2400 | 1350x2800 | 1540x2800 | 1540x3200 |
Thickness of Printing Plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
Min. Panel (mm) | 180x40x180x40 Min Small Panel 180mm if trimming needed | 200x100x200x100 Min Small Panel 120mm if trimming needed | 200x100x200x100 Min Small Panel 120mm if trimming needed | 200x100x200x100 Min Small Panel 120mm if trimming needed | 200x100x200x100 Min Small Panel 120mm if trimming needed | 200x100x200x100 Min Small Panel 120mm if trimming needed | 200x100x200x100 Min Small Panel 120mm if trimming needed | 200x100x200x100 Min Small Panel 120mm if trimming needed | 200x100x200x100 Min Small Panel 120mm if trimming needed |
Max.Slotting Depth (mm) | 165 | 250 | 250 | 320 | 320 | 320 | 320 | 560 | 560 |
Max.Thickness of Sheet (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Industry Applications
The Keshenglong&Shinko Super Alpha Full Servo Drive Flexo Printing Slotting Die Cutting Machine is ideal for various industries requiring high-quality, high-speed printing and packaging solutions. Its advanced features and versatility make it suitable for the following sectors:
2. Food & Beverage Packaging
Ideal for the food and beverage sector, where packaging integrity and print quality are crucial for branding and product protection. The high-precision slotting and die-cutting capabilities make it perfect for creating packaging for bottles, cans, and other consumables.
3. Consumer Goods Packaging
Suitable for the production of high-quality packaging for consumer products, including electronics, personal care items, and household goods. This Keshenglong&Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Machine ensures superior print quality and efficient production, supporting branding and marketing needs.
4. E-commerce Packaging
5. Toys & Entertainment
Product FAQ (Frequently Asked Questions)
1. What type of material can the machine handle?
The Keshenglong&Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Machine can handle a wide range of corrugated cardboard and flexible materials commonly used in packaging production.
2. What is the maximum speed the machine can operate at?
The Keshenglong&Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Machine can run at speeds of up to 150 sheets per minute, depending on the material and printing requirements.
3. Does the machine require a special foundation or installation space?
A level floor with sufficient space for Keshenglong&Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Machine operation and maintenance access is required. Specific installation guidelines will be provided during the setup process.
Ready to enhance your production line with advanced flexo printing and die-cutting technology?
Contact us today for more information or to request a quote.
