Sa Movable Full Servo Flexo Printer Slotter Die Cutter Inline Machine

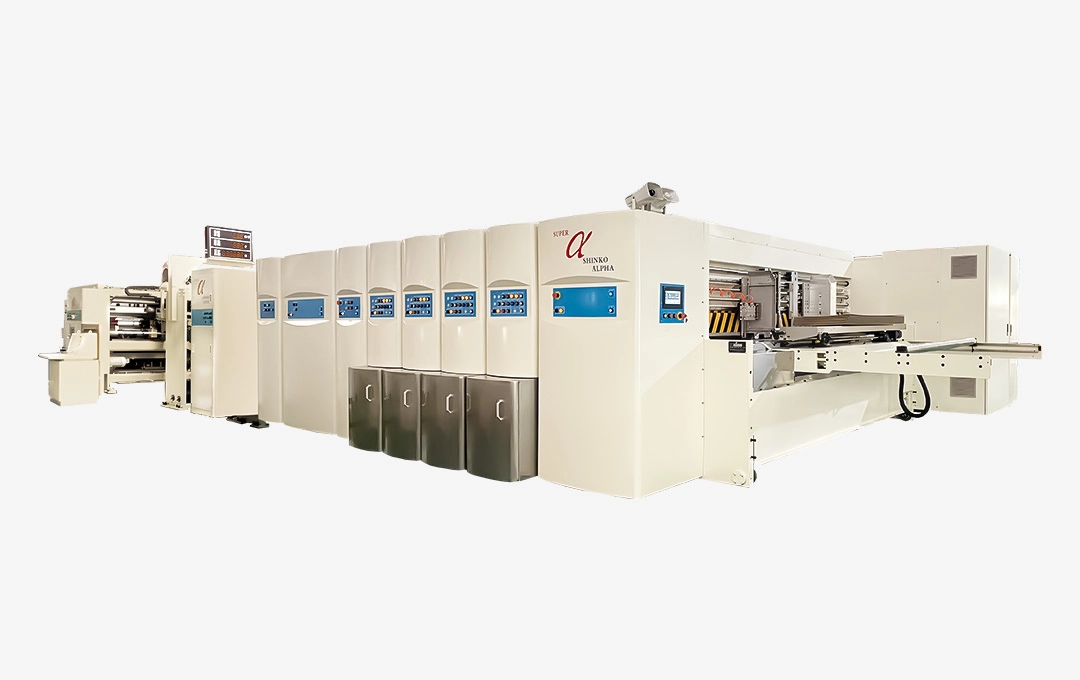

Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Inline Folding Gluing Counting Ejecting Machine

This state-of-the-art Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Machine streamlines your production with precision. Experience seamless operation with its Inline Folding Gluing Counting Ejecting capabilities, ensuring unparalleled efficiency. Designed for high-performance tasks, this Keshenglong&Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Inline Folding Gluing Counting Ejecting Machine enhances productivity while maintaining premium quality. Ideal for businesses seeking innovation and reliability, the Shinko Super Alpha is your go-to solution for advanced printing and cutting needs.

DELIVERY
4 MONTHS
MANUFACTURE
MADE IN CHINA
PAYMENT TERMS
TT/LC
GUARANTEE
1 YEAR
BRAND
KESHENGLONG
CUSTOMIZED
PERMIT
Get a free quote

standard

01. One-button operation function (test printing with one sheet, regular production can be done).
02. Equipped with remote diagnosis and maintenance function.
3. Full servo-driven feeding unit, printing unit, slotting unit, die cutting unit.
4. Adopt Japan Yaskawa servo control system.
5. The printing cylinder is driven by a servo motor, and it takes only 15 seconds to rotate a circle.
6. Adopts computerized automatic plate-locking system.
7. Dual slotting unit(creasing unit + slotting unit).
8. The whole machine is designed and manufactured according to high requirements, high speed, reliability and safety, quick order change and easy operation.
09. PLC control system with touch screen control.
9. Forming roller:high folding accuracy that meets every customer's demands, using Shinko's patented computer-designed forming roller system based on over 40 years of experience as a long-established manufacturer.
10. Able to connect to the ERP production management system.

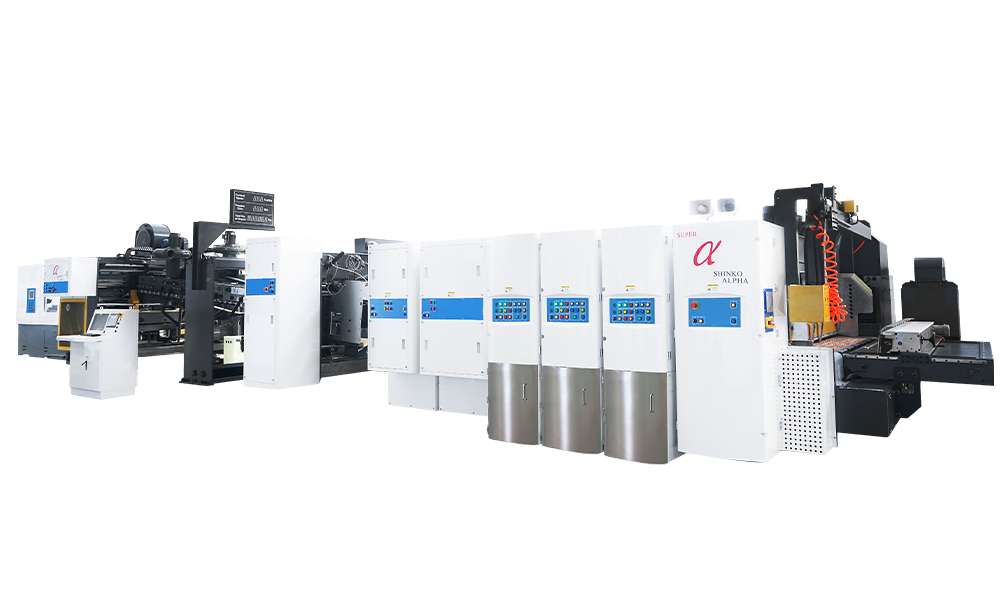

Sa Movable Full Servo Flexo Printer Slotter Die Cutter Inline Machine

Specification

Data/Model 600x1800 900x2000 900x2400 1200x2400 1200x2800 1400x2400 1400x2800 1600x2800 1600x3200
Max.machine speed (pcs/min) 375 375 350 300 275 250 250 200 180
Max.sheet size(RSC)(mm) 600x1800 880x2000 880x2400 1210x2400 1210x2800 1350x2400 1350x2800 1520x2800 1520x3200
Min.sheet size(RSC)(mm) 200x450 230x755 230x755 290x755 290x755 360x755 360x755 460x710 460x710
Max.sheet size(no folding) (mm) 600x900 880x1000 880x1300 1210x1300 1210x1300 1350x1300 1350x1300 1720x2800 1720x3200
Min.sheet size(no folding) (mm) 200x450 230x660 230x660 290x680 290x680 360x680 360x680 1540x2800 1540x3200
Max.printing area(mm) 570x1700 850x2000 850x2400 1150x2400 1150x2800 1350x2400 1350x2800 7.2 7.2
Glue tab width(mm) 35 35 35 35 35 35 35 200x100x200x100 Min Small Panel 120mm if trimming needed 200x100x200x100 Min Small Panel 120mm if trimming needed
Thickness of printing plate(mm) 7.2 7.2 7.2 7.2 7.2 7.2 7.2 560 560
Min. panel (mm)   180x40x180x40 Min Small Panel 180mm if trimming needed 200x100x200x100 Min Small Panel 120mm if trimming needed 200x100x200x100 Min Small Panel 120mm if trimming needed 200x100x200x100 Min Small Panel 120mm if trimming needed 200x100x200x100 Min Small Panel 120mm if trimming needed 200x100x200x100 Min Small Panel 120mm if trimming needed 200x100x200x100 Min Small Panel 120mm if trimming needed 10 10
Max.slotting depth (mm) 165 250 250 320 320 320 320
Max.thickness of sheet (mm) 10 10 10 10 10 10 10
Product Detail

How It Works

  • Step 1: The flexo printing unit prints vibrant designs with exceptional color accuracy.
  • Step 2: The grooving unit creates precise folds for easy box formation, ensuring perfect structural integrity.
  • Step 3: The die-cutting unit precisely cuts the printed and scored material into the required shapes, ensuring perfect edges and accuracy.

Customization Options

  • 1. Customizable printing widths and die-cutting sizes.
  • 2. Flexible configurations for different types of packaging materials.
  • 3. Integration with custom ERP or production management systems.

Compliance & Certifications

The Keshenglong&Shinko Super Alpha Full Servo Drive Flexo Printing Slotting Die Cutting Machine complies with a variety of international safety and quality standards, ensuring that it meets the highest performance and regulatory requirements:

1. ISO 9001 Certified:
Our production facilities and quality management systems are certified under the ISO 9001 standard, which guarantees that the Shinko Super Alpha is manufactured to the highest international quality standards.

2. CE Certification:
The Keshenglong&Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Inline Folding Gluing Counting Ejecting Machine complies with the European Union’s CE Marking, which ensures it meets health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).

3. RoHS Compliant:
The Keshenglong&Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Inline Folding Gluing Counting Ejecting Machine is RoHS (Restriction of Hazardous Substances) compliant, ensuring that the machine is free from hazardous materials and safe for use in global markets.

4. UL Listed:
The Keshenglong&Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Inline Folding Gluing Counting Ejecting Machine has been tested and certified by Underwriters Laboratories (UL) for safety, ensuring that it meets the safety requirements set by global safety standards for machinery used in commercial production.

5. Environmental Impact Compliance:
In line with global efforts to reduce industrial pollution, the Shinko Super Alpha Movable Type Full Servo Drive Flexo Printing Slotting Die Cutting Inline Folding Gluing Counting Ejecting Machine adheres to various environmental regulations, ensuring that it is a responsible choice for manufacturers looking to minimize their environmental footprint.



Ready to enhance your production line with advanced flexo printing and die-cutting technology?
Contact us today for more information or to request a quote.
